隔膜阀 Diaphragm Valve
1. A-ES61～72-T气动隔膜阀 Pneumatic diaphragm valve (Saunders technology)
This product is designed based on Saunders valve company’s technology and standard. It is quite suitable for non-pollution required area or dangerous area and acid-base corrosive medium and high concentration suspension with fibre.
Features:
No stuffing box. Restricting element is elastic diaphragm. When the valve is closed, there is no leakage.
Smooth flow path, low flow resistance, high flow capacity
Diaphragm and liner are of superior corrosion resistance and abrasive resistance.
公称通径 Nominal diameter: DN20～DN250
公称压力 Nominal pressure: PN16、PN10、PN6

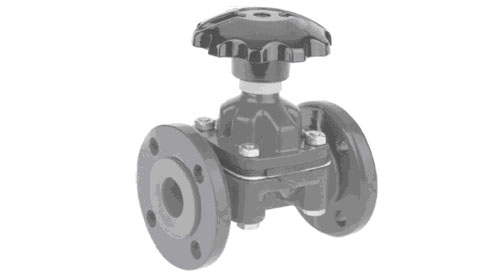

2. A-T手动隔膜阀 Manual operated diaphragm valve (Saunders technology)
This product is designed and manufactured according to Saunders valve company’s technology and standard. It is quite suitable for non-pollution required area or dangerous area and acid-base corrosive medium and high concentration suspension with fibre.
Features:
No stuffing box. Restricting element is elastic diaphragm. When the valve is closed, there is no leakage.
Smooth flow path, low flow resistance, high flow capacity
Diaphragm and liner are of superior corrosion resistance and abrasive resistance.
Nominal diameter: DN20～DN350
Nominal pressure: PN16、PN10、PN6
3. IA-T手动隔膜阀 Manual diaphragm valve
Model A manual diaphragm valve is designed and manufactured according to Saunders Valve company’s design and standard. Model IA manual diaphragm is developed by ourselves based on similar products’ standard of Saunders company. They are quite suitable for non-pollution required area or dangerous area and acid-base corrosive medium and high concentration suspension with fibre.
Features:
No stuffing box. Restricting element is elastic diaphragm. When the valve is closed, there is no leakage.
Smooth flow path, low flow resistance, high flow capacity
Diaphragm and liner are of superior corrosion resistance and abrasive resistance.
Hand wheel is lift type structure, with stroke indication.
Nominal diameter: DN20～DN150
Nominal pressure: PN16、PN10
4. KB-T手动直通隔膜阀 Manual type straight way diaphragm valve
This product is developed by ourselves based on similar products’ standard of Saunders company. It is widely used in chemical, petroleum, light industry and food industries. It can be used in pollution allowed area and dangerous area.
Features:
No stuffing box. Restricting element is elastic diaphragm. When the valve is closed, there is no leakage.
Smooth flow path, low flow resistance, high flow capacity. The valve is suitable for medium of high concentration, with crude fiber and more suspension granulars.
Diaphragm and liner are of superior corrosion resistance and abrasive resistance.
Nominal diameter: DN25～DN125
Nominal pressure: PN16、PN10
5. K-T型手动直通隔膜阀 Manual type straight way diaphragm valve
This product is developed by ourselves based on similar products’ standard of Saunders company. It is widely used in chemical, petroleum, light industry and food industries. It can be used in pollution allowed area and dangerous area.
Features:
No stuffing box. Restricting element is elastic diaphragm. When the valve is closed, there is no leakage.
Smooth flow path, low flow resistance, high flow capacity. The valve is suitable for medium of high concentration, with crude fiber and more suspension granulars.
Diaphragm and liner are of superior corrosion resistance and abrasive resistance.
Nominal diameter: DN32～DN100
Nominal pressure: PN16、PN10
6. A-ES54～58-T双动型气动隔膜阀 Double action type pneumatic diaphragm valve
This valve has the advantages of low signal pressure, energy saving, fast working, long life diaphragm, small size and easy maintenance. It is widely used in petroleum, chemical, power station and light industries. It is quite suitable for bad working environment, acid, alkali, salt and other organic solvent, high concentration and suspension fluid with fiber.
Nominal diameter: DN20～DN200
Nominal pressure: PN16、PN10
1. A-ES61～72-T气动隔膜阀 Pneumatic diaphragm valve (Saunders technology)
This product is designed based on Saunders valve company’s technology and standard. It is quite suitable for non-pollution required area or dangerous area and acid-base corrosive medium and high concentration suspension with fibre.
Features:
No stuffing box. Restricting element is elastic diaphragm. When the valve is closed, there is no leakage.
Smooth flow path, low flow resistance, high flow capacity
Diaphragm and liner are of superior corrosion resistance and abrasive resistance.
公称通径 Nominal diameter: DN20～DN250
公称压力 Nominal pressure: PN16、PN10、PN6
2. A-T手动隔膜阀 Manual operated diaphragm valve (Saunders technology)
This product is designed and manufactured according to Saunders valve company’s technology and standard. It is quite suitable for non-pollution required area or dangerous area and acid-base corrosive medium and high concentration suspension with fibre.
Features:
No stuffing box. Restricting element is elastic diaphragm. When the valve is closed, there is no leakage.
Smooth flow path, low flow resistance, high flow capacity
Diaphragm and liner are of superior corrosion resistance and abrasive resistance.
Nominal diameter: DN20～DN350
Nominal pressure: PN16、PN10、PN6
3. IA-T手动隔膜阀 Manual diaphragm valve
Model A manual diaphragm valve is designed and manufactured according to Saunders Valve company’s design and standard. Model IA manual diaphragm is developed by ourselves based on similar products’ standard of Saunders company. They are quite suitable for non-pollution required area or dangerous area and acid-base corrosive medium and high concentration suspension with fibre.
Features:
No stuffing box. Restricting element is elastic diaphragm. When the valve is closed, there is no leakage.
Smooth flow path, low flow resistance, high flow capacity
Diaphragm and liner are of superior corrosion resistance and abrasive resistance.
Hand wheel is lift type structure, with stroke indication.
Nominal diameter: DN20～DN150
Nominal pressure: PN16、PN10
4. KB-T手动直通隔膜阀 Manual type straight way diaphragm valve
This product is developed by ourselves based on similar products’ standard of Saunders company. It is widely used in chemical, petroleum, light industry and food industries. It can be used in pollution allowed area and dangerous area.
Features:
No stuffing box. Restricting element is elastic diaphragm. When the valve is closed, there is no leakage.
Smooth flow path, low flow resistance, high flow capacity. The valve is suitable for medium of high concentration, with crude fiber and more suspension granulars.
Diaphragm and liner are of superior corrosion resistance and abrasive resistance.
Nominal diameter: DN25～DN125
Nominal pressure: PN16、PN10
5. K-T型手动直通隔膜阀 Manual type straight way diaphragm valve
This product is developed by ourselves based on similar products’ standard of Saunders company. It is widely used in chemical, petroleum, light industry and food industries. It can be used in pollution allowed area and dangerous area.
Features:
No stuffing box. Restricting element is elastic diaphragm. When the valve is closed, there is no leakage.
Smooth flow path, low flow resistance, high flow capacity. The valve is suitable for medium of high concentration, with crude fiber and more suspension granulars.
Diaphragm and liner are of superior corrosion resistance and abrasive resistance.
Nominal diameter: DN32～DN100
Nominal pressure: PN16、PN10
6. A-ES54～58-T双动型气动隔膜阀 Double action type pneumatic diaphragm valve
This valve has the advantages of low signal pressure, energy saving, fast working, long life diaphragm, small size and easy maintenance. It is widely used in petroleum, chemical, power station and light industries. It is quite suitable for bad working environment, acid, alkali, salt and other organic solvent, high concentration and suspension fluid with fiber.
Nominal diameter: DN20～DN200
Nominal pressure: PN16、PN10
